ST908D

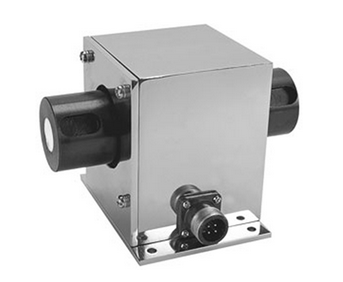

產品圖片

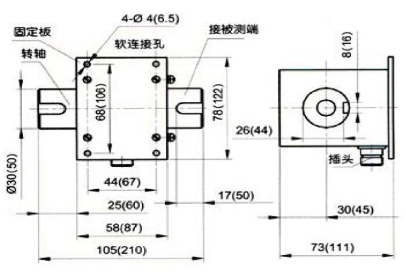

PRODUCT IMAGE安裝尺寸
MOUTING DIMENSION特點與用途
FEATURES & APPLICATIONS電阻應變為敏感元件和集成電路構成的一體產品;
精度高,性能穩定可靠;
電刷供電,可測量正反兩方向扭矩值;
兩端均為鍵連接, 安裝使用方便;
最高測量轉速100轉/分鐘。
Constituted by Strain gauge sensitive components and
integrated circuits;High precision with stable and reliable performance;
This sensor can be operated long-term in high-speed without
wear ring and other wear parts, the output is OK for positive
and negative torque signal;Both ends are keyed;
Maximum speed of torque cannot over 100 r/min.

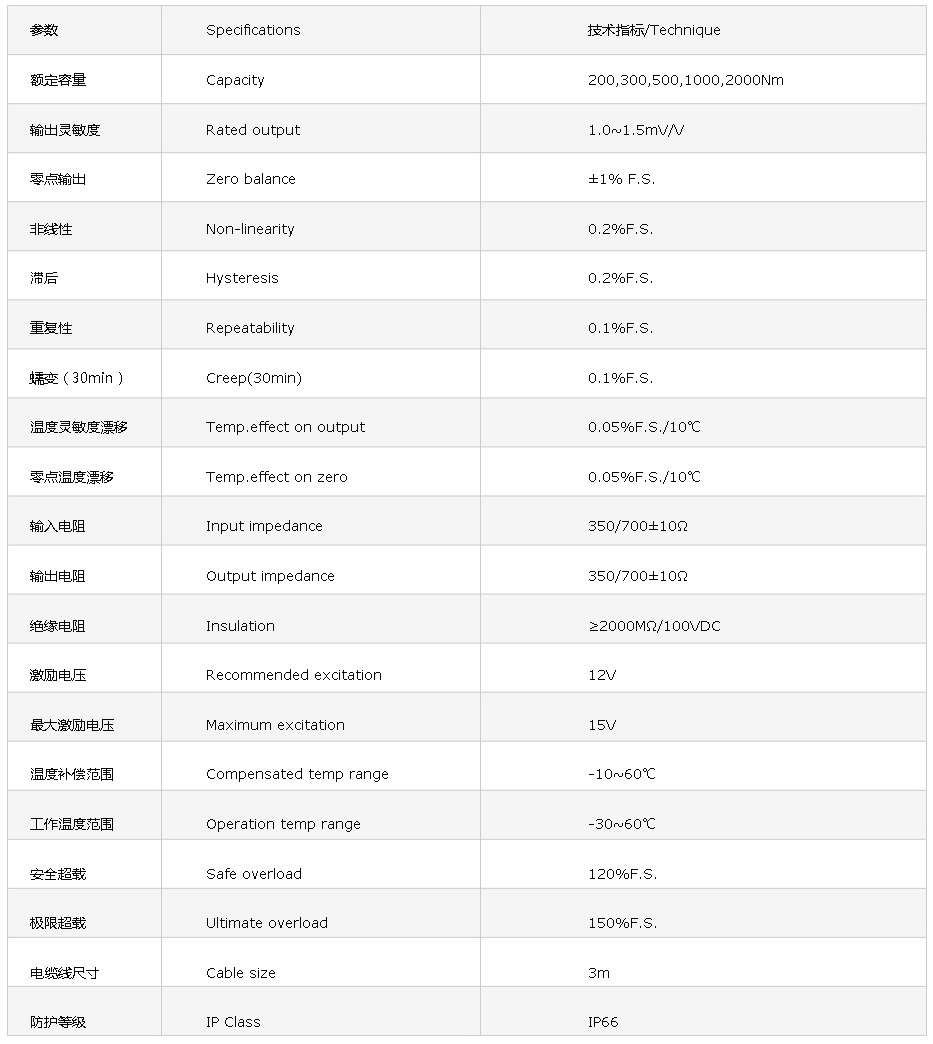

技術參數

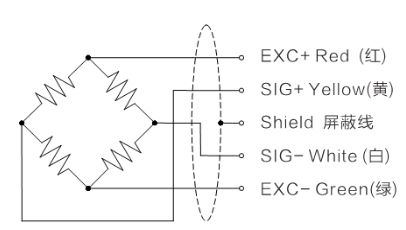

SPECIFICATIONS配線圖
