ST908B

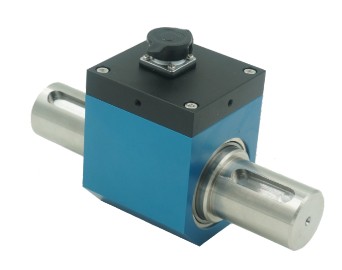

產品圖片

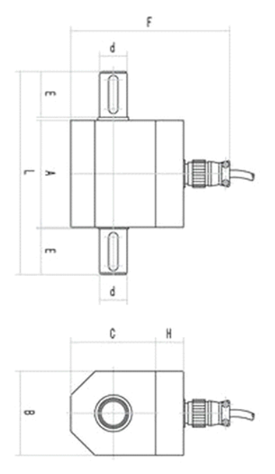

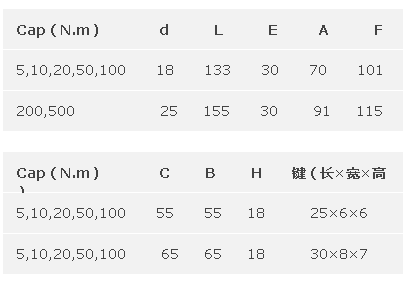

PRODUCT IMAGE安裝尺寸
MOUTING DIMENSION特點與用途
FEATURES & APPLICATIONS電阻應變為敏感元件和集成電路構成的一體產品;
精度高,性能穩定可靠;
沒有集流環等磨損件,可高速長時間運轉,輸出正反轉扭矩信號;
兩端均為鍵連接;
轉速可選,最高8000轉/分鐘
The resistance strain is an integrated product consisting of
ensitive components and integrated circuits;High accuracy, stable and reliable performance;
No slip ring wear parts,high-speed running for a long time,the
positive signal output torque;Both ends are keyed;
Optional speed,maximum 8000 rpm/mim.

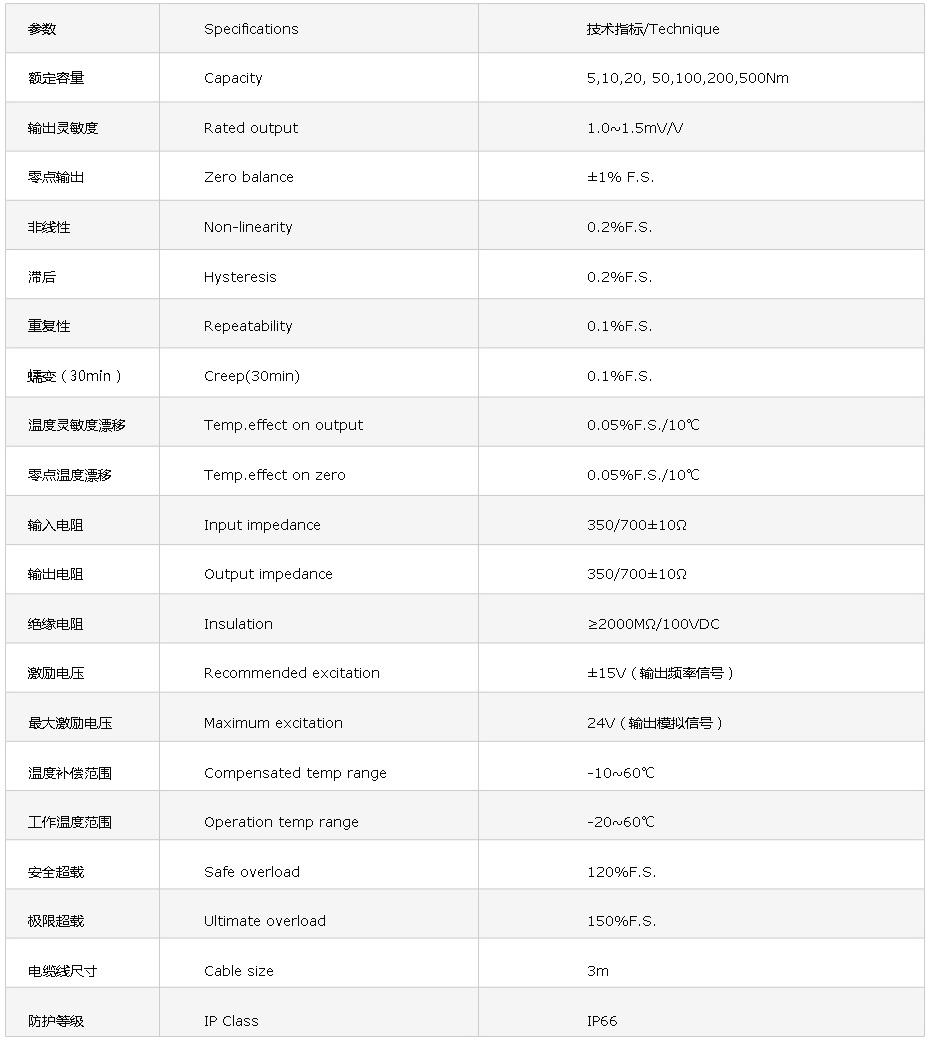

技術參數

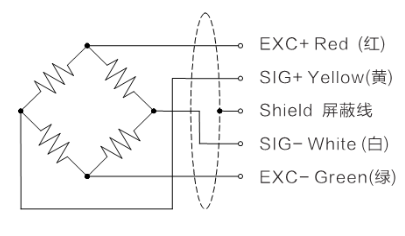

SPECIFICATIONS配線圖
